Electrovoice RE2-N2 Handheld System: HTU2D-267a transmitter featuring the N/D267a cardiod dynamic element, and a RE-2 diversity receiver. The RE-2 brings clean channels, clear sound, and clever wireless to your performance.

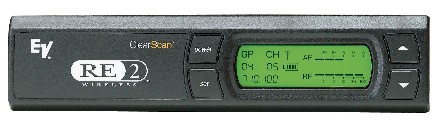

RE-2 Reciever

Receiver Type: Synthesized PLL.

Frequency Range (RF): A Band 648MHz ~ 676MHz; B Band 696MHz ~ 724MHz.

Number of Channels: 1112 possible channels Programmable in 25 kHz steps.

Modulation: +/- 40 kHz

Diversity: Digital Posi-Phase™ True Diversity.

RF Sensitivity: < 1.0 mV for 12 dB SINAD.

Image Rejection: > 60dB.

Squelch: Tone Code plus Amplitude.

Ultimate Quieting: > 100dB.

FCC Certification: Approved under Part 15.

Power Requirements: 12 VAC, 300mA max.

Antennas: Detachable 1/4 wave.

Dimensions: 2.75” H x 1.96” W x 1.60” D (69.85cm H x 49.78mm W x 40.64mm D).

Frequency Response: 50 – 15kHz +/- 2dB.

Balanced Output: -20 dBV (max @ 40 kHz deviation).

Unbalanced Output: adjustable 8 mV to 0.755V RMS.

Distortion: <1.0%, 0.5% typical (ref 1kHz, 40kHz deviate).

Signal-to-Noise Ratio: >100dB A Weighted.

Dynamic Range: >100dB.

Radiated Output: 30 mW typical.

Microphone Head Electro-Voice267A: N/D 267a cardioid N/DYM Dynamic.

Audio Gain Adjustment 26 dB.

Power Requirements: 9 Volt Alkaline Battery.

Battery Life (Typical):  > 8 hours with 9-Volt Alkaline Typical.

Handheld Antenna: Internal 1/2 wave.

Dimensions: 24.0 cm (9.4 in.) Long.
